Aluminum L Angle

Aluminum L Angle

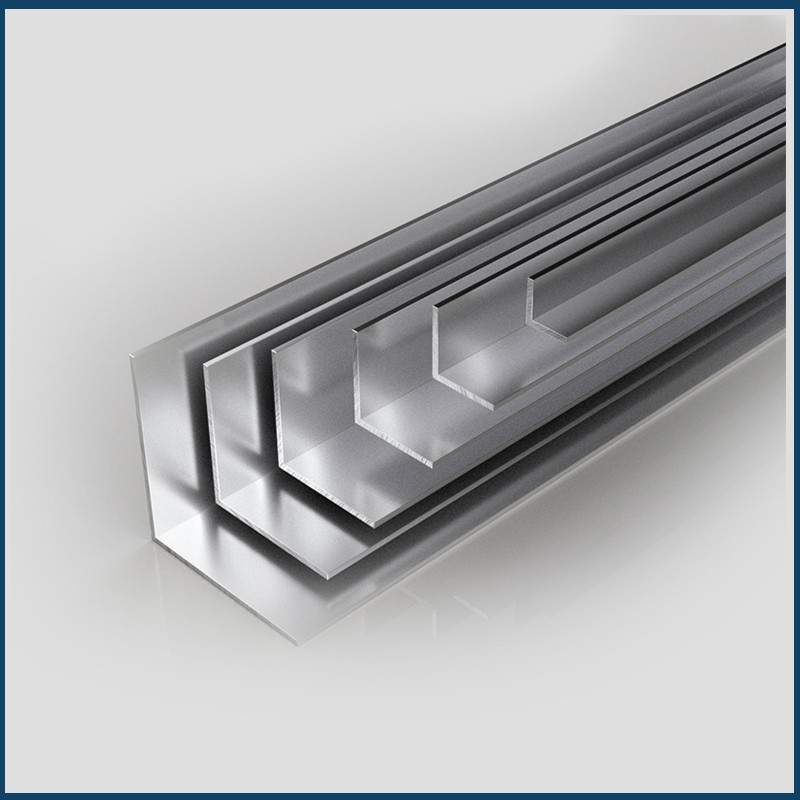

Aluminium L angle is widely used in structural applications where strength is important, with superior corrosion resistance, good machinability, and better welding performance, which is also heat-treatable, resistant to stress cracking and non-magnetic.

We are one specialized manufacturer with various intensive processing scopes, including aluminum design support, prototyping, aluminum fabrication, CNC machining and tooling, cutting, anodizing, punching as well as part assembly, packaging and supply chain solutions.

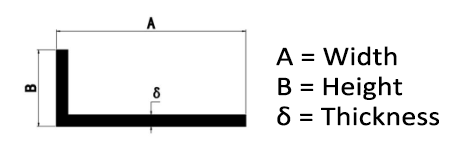

NO	A(mm)	B(mm)	δ(mm)	Model	Weight(kg/m)
1	105	37	5	ZJDJ064	1.856
2	100	50	5	L100*50*5.0	1.965
3	100	40	1.8	L100*40*1.8	0.674
4	90	90	5	ZJDJ057	2.363
5	80.7	25	3	L80.7*25*3.0	0.832
6	76	76	6.35	L76*76*6.35	2.506
7	76	50.8	4.8	L76*50.8*4.8	1.587
8	70	25	4	ZJDJ062	0.986
9	55.5	18.05	3	ZJD-MQ084	0.574
10	50	50	5	L50*50*5.0	1.287
11	50	50	4	ZJDJ035	1.041
12	50	50	3	ZJD-MQ065	0.789
13	50	50	2	L50*50*2.0	0.531
14	50	40	3	L50*40*3	0.707
15	50	30	4	L50*30*4	0.824
16	50	30	3	L50*30*3.0	0.626
17	50	25	5	L50*25*5.0	0.949
18	50	18	3	L50*18*3.0	0.528
19	45	45	5	L45*45*5.0	1.152
20	45	18	3	L45*18*3.0	0.488
21	40	40	1.6	L40*40*1.6	0.34
22	40	30	4	L40*30*4	0.715
23	40	26	4	ZJD-MM038	0.67
24	40	25	4	L40*25*4	0.661

NO	A(mm)	B(mm)	δ(mm)	Model	Weight(kg/m)
25	40	20	3	ZJDJ027	0.462
26	39	35	5	ZJDJ061	0.934
27	38	38	3	ZJDJ025	0.591
28	38	25	3	ZJDJ021	0.486
29	38	19	4	ZJDJ060	0.574
30	37	18.5	2	ZJD-MQ083	0.29
31	35	30	2	L35*30*2.0	0.341
32	30	30	3	ZJDJ017	0.462
33	30	30	2	ZJDJ016	0.314
34	30	25	2.5	ZJDJ055	0.354
35	30	25	2	L30*25*2.0	0.287
36	30	20	3	L30*20*3.0	0.382
37	30	20	1.8	ZJDJ051	0.235
38	26	17	1.5	ZJDJ052	0.168
39	25	25	3	L25*25*3.0	0.382
40	25	25	1	ZJDJ053	0.132
41	25	25	1.5	ZJDJ056	0.196
42	25	20	5	ZJDJ063	0.542
43	25	20	2	L25*20*2	0.233
44	25	18	2	ZJDJ011	0.221
45	25	13	3	L25*13*3	0.285
46	20	20	2	ZJDJ009/L20*20*2	0.206
47	20	20	1.8	ZJDJ054	0.186
48	20	20	1.2	ZJDJ008	0.12

NO	A(mm)	B(mm)	δ(mm)	Model	Weight(kg/m)
49	19	19	0.9	L19*19*0.9	0.09
50	15	15	2	ZJDJ006	0.152
51	15	15	1	ZJDJ050	0.078
